MedLux XLS Downlight System

MedLux® XLS Downlight Systems

Product Overview

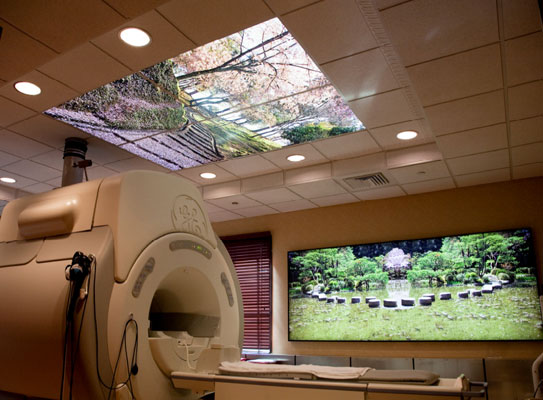

The First LED downlight developed for use in an MRI suite. Our success is confirmed by a proven track record of 1500+ fixtures installed in the US and Canada since 2006.

MedLux® XLS-3.0 MRI-Safe LED Lighting System

MedLux® XLS-3.0 MRI-Safe LED Lighting System

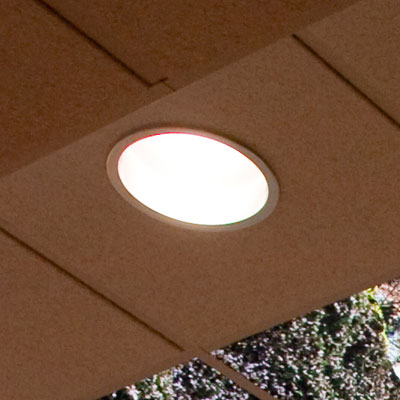

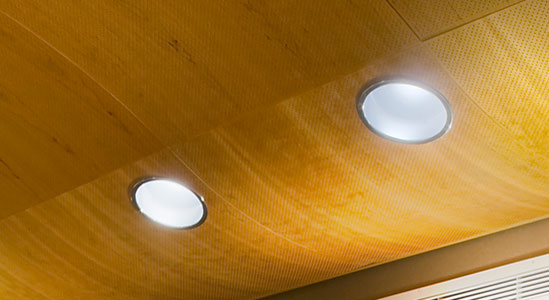

Everbrite Lighting is proud to introduce the next generation in lighting technology – MedLux® XLS-3.0 System – down lights for MRI suite applications. This high performance recessed light emitting diode (LED) down light is designed for use in magnetic resonance imaging and other medical environments. Exceptional LED life and reliability provide a maintenance-free lighting system. Simply stated, LEDs will eliminate the costs and hassles associated with lighting maintenance, in addition to being 100% MRI safe.

MedLux® XLS MRI-Safe LED Lighting System

MedLux® XLS-2.0 MRI-Safe LED Lighting System

MedLux XLS-2.0 System – downlights for MRI suite applications. This high performance vertical light emitting diode (LED) downlight is designed for use in magnetic resonance imaging environments. Exceptional LED life and reliability provide a maintenance-free lighting system. Simply stated, LEDs will eliminate the costs and hassles associated with lighting maintenance, in addition to being 100% MRI safe.

MedLux® XLS MRI-Safe LED Lighting System

MedLux XLS Dimmer Control and Drive Circuit

LED and incandescent light sources will exhibit a color shift when the excitation current is changed. Our dimming system uses a technique called pulse width modulation which literally turns the LEDs ON and OFF so quickly that your eye does not perceive any change (flicker). The amount of time the LEDs are ON compared to OFF is called the duty cycle. As this duty cycle is varied from from 100% to 0%, the perceived brightness decreases in the same proportion. While this is happening, the LEDs always see full normal current whenever they are ON, so there is no color shift at all. All MedLux LED-based illumination products incorporate constant current drive circuitry. This circuitry includes overvoltage and surge protection to prevent damage to the LEDs

MedLux XLIM Dimming Interface Module

The MedLux® XLIM Interface Module provides conversion from third party controllers that supply either a PWM (Pulse Width Modulation) or 0-10VDC dimming level signal. Output signals are low voltage, class 2 rated waveform that comply with the proprietary dimming system used by all MedLux® MRI compatible lighting products.
